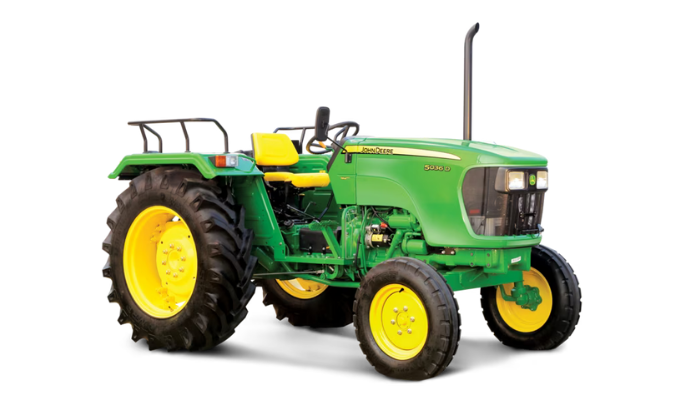

John Deere 5036D
- Vehicle Overview ⮟
- Specifications & Features ⮟
John Deere 5036D
Modern and technologically advanced, John Deere tractor 5036 offers unmatched efficiency at a competitive tractor price. This multipurpose agricultural tractor is best suitable for all farming and haulage applications.
Look out for –
- Power steering increases productivity for long working hours
- Collar Shift Gear Box for more life and less maintenance
- Side Shift Gear Levers for ease of operation and higher comfort
To know more about John Deere tractor price range connect with your nearest dealer now !
John Deere 5036D
ENGINE
| Type | John Deere 3029D, 36 HP (26.8 kW), 2100 RPM, 3 Cylinders, Coolant cooled with overflow reservoir, Naturally aspirated |
|---|---|
| Air filter | Dry Type, Dual element |
TRANSMISSION
| Type | Synchromesh Transmission (TSS) |
|---|---|
| Clutch | Single |
| Gear box | 8 Forward + 4 Reverse, Collarshift |
| Speeds | Forward 3.13 – 34.18 kmph Reverse 4.10 -14.87 kmph |
BRAKES
| Type | Oil Immersed Disc Brakes |
|---|
HYDRAULICS
| Maximum Lifting capacity | 1600 kgf |
|---|---|
| 3 point linkage | Category- II Automatic depth and draft control (ADDC) |
STEERING
| Type | Power |
|---|
POWER TAKE OFF
| Type | Independent, 6 Splines |
|---|---|
| Standard | 540 @ 2100 ERPM |
WHEELS AND TYRES
| Front | 6.0 x 16 (0.15 x 0.41 m), 8 PR |
|---|---|
| Rear | 12.4 x 28 (0.31 x 0.71 m), 12 PR 13.6 x 28 (0.34 x 0.71 m), 12 PR (Optional) |
FUEL TANK
| Capacity | 60L |
|---|
ELECTRICAL SYSTEM
| ELECTRICAL SYSTEM | 88 Ah, 12 V Battery, 40 Amp. Alternator, 12 V, 2.5 kW Starter motor |
|---|
DIMENSIONS AND WEIGHT
| Total weight | 1760 kg |
|---|---|
| Wheel base | 1970mm |
| Overall length | 3400 mm |
| Overall width | 1780 mm |
| Ground clearance | 0390 mm |
| Turning radius with Brakes | 2900 mm |
